UV-LED Single-Pass Inkjet Printer (SU Series)

Fully digital, single-pass UV printer for rigid and sheet/roll media. Power on and print with no plate-making. Designed for industrial uptime with head life >2 years, head-protection sensors, and a stable vacuum conveyor for accurate laydown at speed.

Smart Automation & Control

• Automatic negative-pressure ink circulation removes air from the ink path; maintains stable nozzles and head health.
• Auto calibration & positioning with multi-sensor guidance for precise registration on varied substrates.
• Patented vacuum belt with auto deviation correction holds sheets/boards flat and steady.
• PLC + Sunthinks control board, image feathering, variable-data and multi-task continuous printing.

Key Features

• Epson S3200-U3 printheads (variable dot, 4-level grayscale) with built-in circulation and high-precision locating pins for easy swap.
• Head protection sensors prevent crashes; start/stop safe printing.

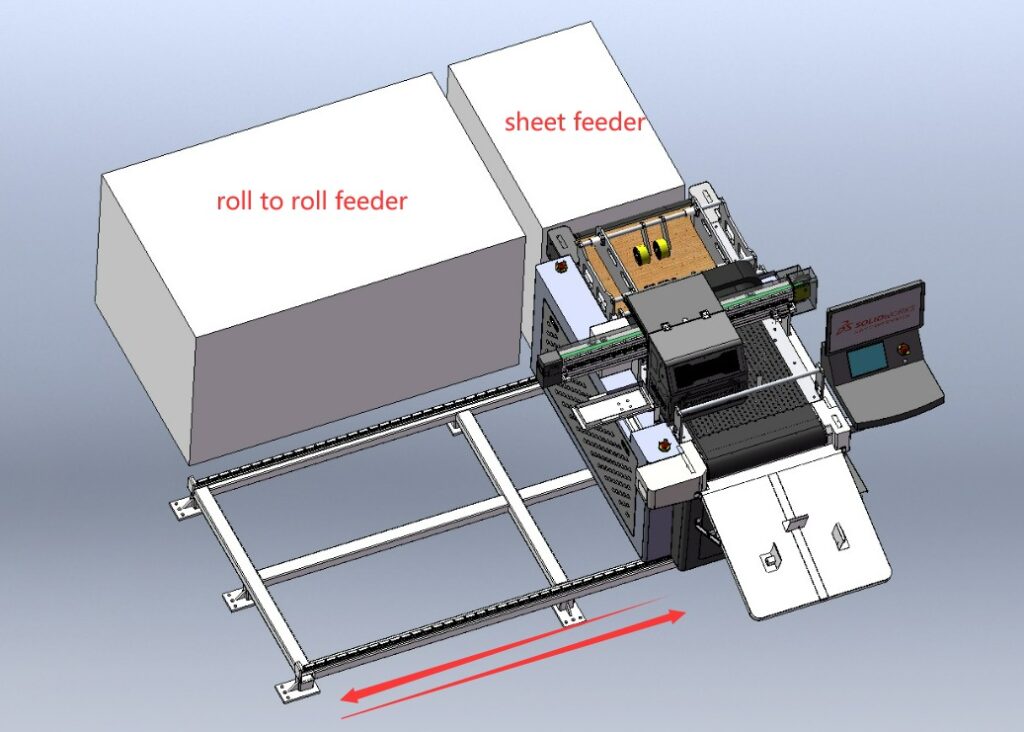

• CMYK+W UV inks; optional sheet or roll feed (or both).
• S-shaped layout saves floor space and scales head count with width.

Representative Specs (model-dependent)

• Resolution / Speed: 600×1200 dpi up to ≈15 m/min (≈19 m²/min); 600×600 dpi up to ≈35 m/min (≈45 m²/min); 600×300 dpi up to ≈50 m/min (≈64 m²/min).
• Print widths / feeding widths: configurations from ~345 mm to ~1280 mm print size; feeding widths up to ~2000 mm.
• Head count: from ~4–15 to ~32–50 (scales with machine width).
• Media height: up to ~100 mm (typical); Auto feeder available (sheet/roll).
• Service: remote support, on-site options; custom sizes available.

Business Benefits

• High throughput, low setup — true single-pass with variable-data for on-demand work.
• Consistent quality — auto calibration, stable belt transport, grayscale jets.
• Broad application range — print direct on plastics, boards, wood, glass, metal, tile, foam and more.
• Lower total cost — no plates, fast changeovers, protected heads, efficient ink circulation.
