Sinosun builds servo-driven folder-gluers from 650–2800 mm working width, supported by options such as non-stop scratch-free feeders, inline inspection stations, and box stackers for counted, tidy outfeed. The platform is aimed at high-speed, stable production with minimal surface marking and simplified downstream packing.
Overview
A versatile folder-gluer for food, pharma, cosmetics, stationery and general cartons. Handles bottom-lock cartons and supports auto-pack lines with a pre-fold section that delivers Fold 1 & Fold 3 at 180°/135°, meeting common auto-cartoning requirements.
Smart Automation & Control
Key Features
Representative Specs
Business Benefits

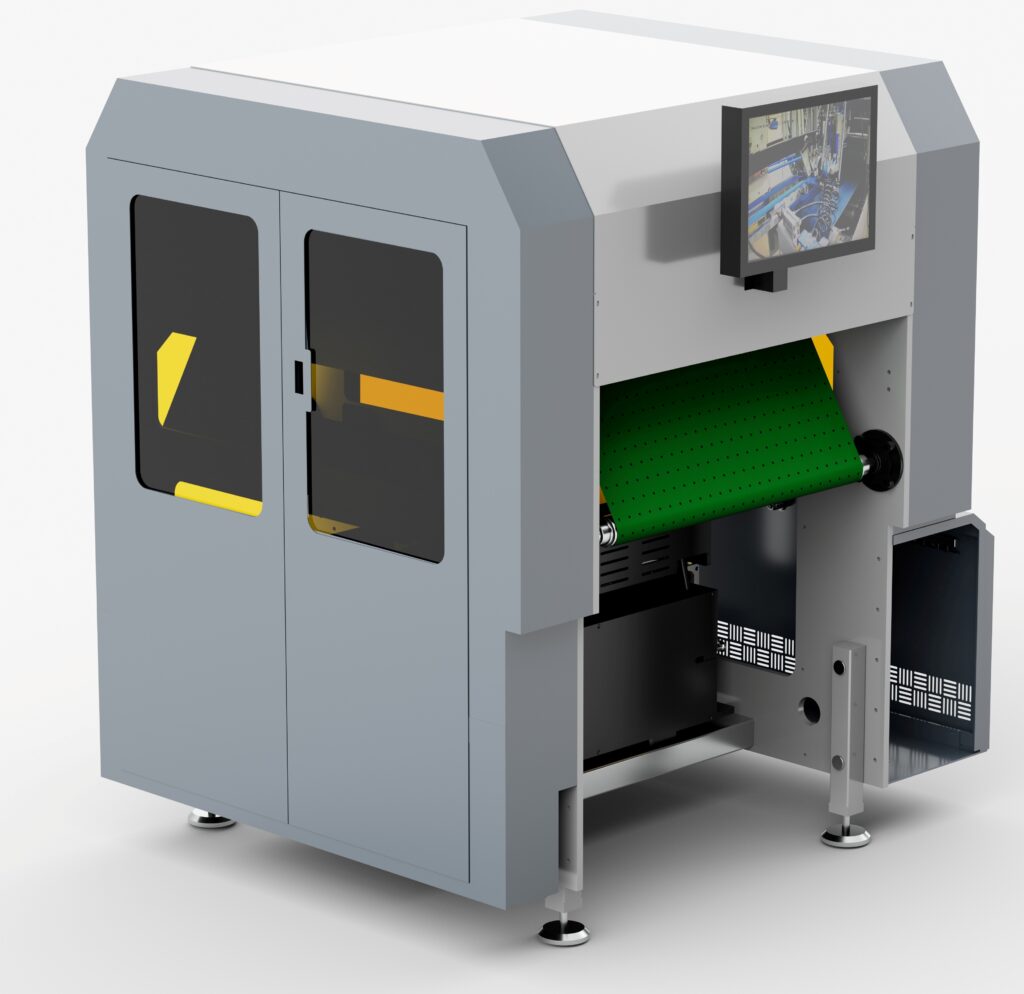

Inspection stations

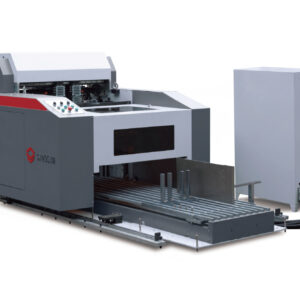

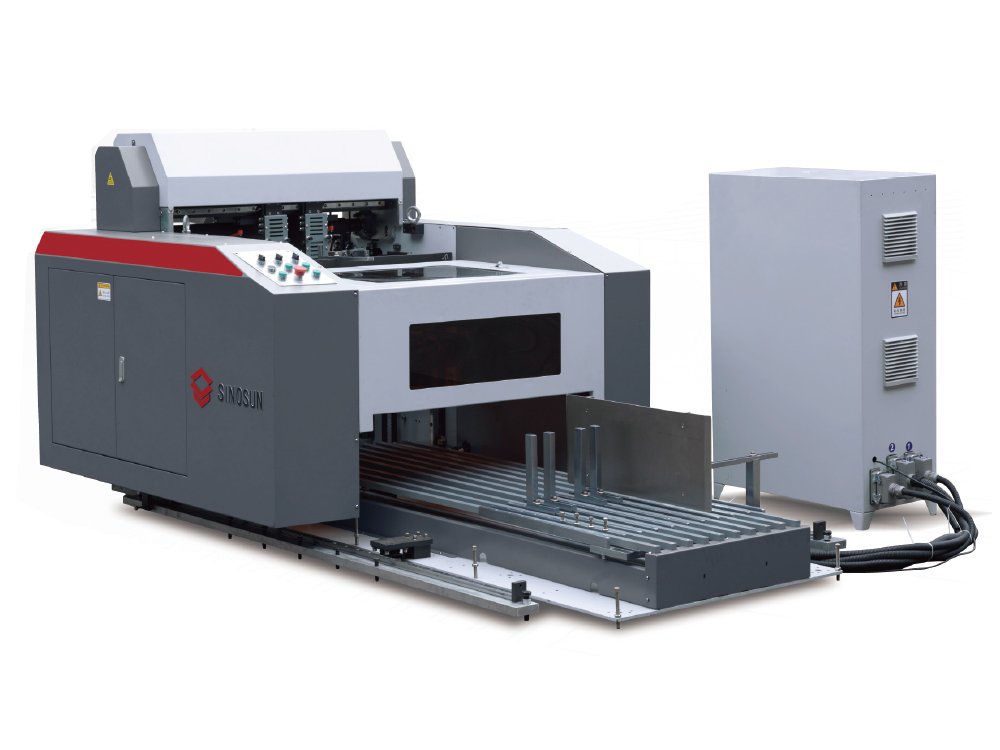

Scratchless Continuous Feeders

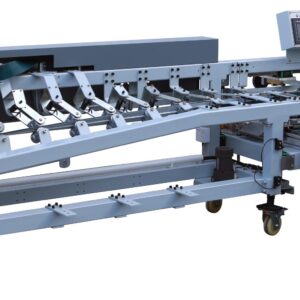

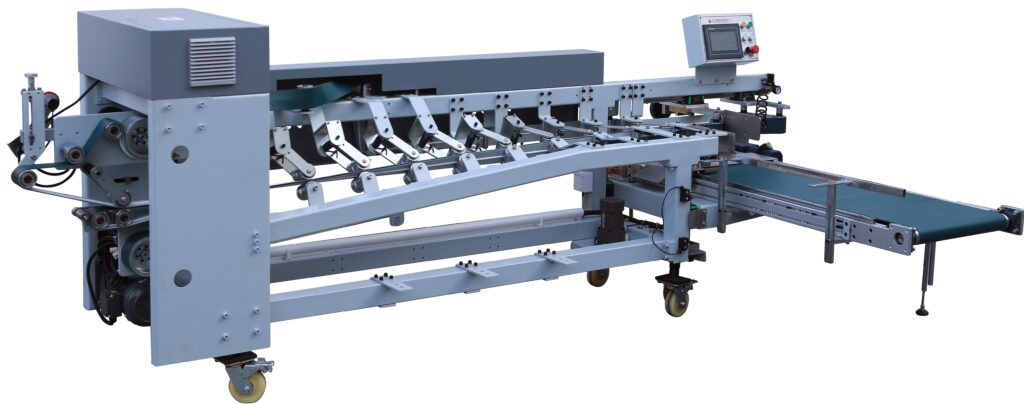

Box Stackers
SINOSUN YZ 650PC&JP intelligent inspection & Feeder
One Key Adjustment of Folder Gluer
A high-speed, servo-driven glue & stitch production line for corrugated cartons (A/B/C/E/EE/BC/EB/AB flute). It’s designed to sit downstream of your print/convert equipment and deliver accurately glued or stitched boxes, counted and stacked for packing.
Key features
Full-servo parameterisation for fast install, easy set-up and stable running; linear slide-rail guides make format changes straightforward. One-key adjustment with job memory up to 4,000 sets.
Optional upper-suction anti-scratch feeder for delicate surfaces; upper & lower servo aligners with auto adjustment and data logging keep register tight at speed.
Anti-mixing inspection (camera) to prevent A/B side mix-ups, plus secondary pre-creasing to stop flap skew during folding.
Sectional, adjustable folding knives for higher throughput; independent servo aligner handles flat and special-shape boxes. An intelligent tracking system continually monitors and corrects errors.
Dual-side servo stitching with no side-width limits and no carton flipping — reducing footprint by roughly half versus traditional stitch lines. Can connect to auto bundling & packing to further cut labour.
Throughput & format
Speed: 0–120 m/min (jog 20 m/min).
Max blank width: 1900 mm (HL-2000 AB-S).
Max box thickness: < 12 mm.

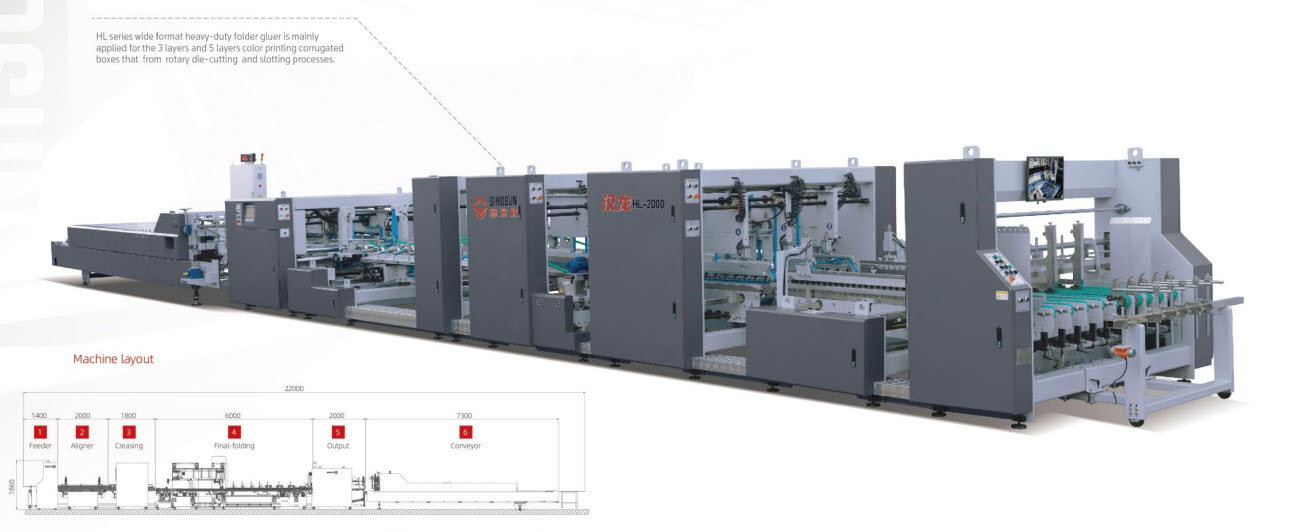

Typical line size (L×W×H): approx. 15,300 × 2,950 × 2,253 mm; Power: ~81 kW, Air: 0.5–0.7 MPa, 10 m³/h, 60 L tank.
Box types supported
Standard “flat” cartons and special-shape boxes in glue or stitch mode; the spec sheet lists workable ranges for W/L/A/H across 3- and 5-ply boards. (See the Box Parameter table for exact windows.)
Downstream options
Pair the line with an auto counter & stacker to deliver neat, counted piles, and integrate strip-and-stack modules when feeding other end-of-line packers. Photos in the document show the inspection camera, secondary pre-crease, and counter/stacker modules used in typical installations.
Where it fits
HL-2000 AB-S suits corrugated converters needing a reliable glue/stitch workcell that reduces touch points, protects surface quality, and keeps boxes flowing to packing — whether you’re tying into a Sinosun gluer or another brand.
Double Feeder Glue Stitcher
HL2000 Gluing
HL-2000 ABS
