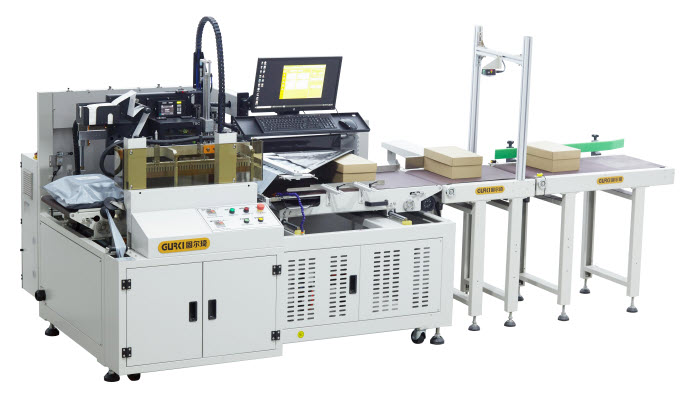

GL70C — Intelligent High-Speed E-commerce Packaging

All-in-one courier bag packing line: automatic code scan, sealing and label print/apply at up to 1,500 bags/hour. Designed to plug into your ERP/WMS, in-line weigher, sorter and carrier platforms for hands-off fulfilment. Saves film by adjusting bag length to each item.

Smart Automation & Control

• One scan → one label logic eliminates mismatches.
• Interfaces with mainstream ERP/WMS; extend to weigher/sorter/delivery.
• Industrial control computer + PLC/HMI; branded components listed in spec.

Key Features

• Speed: 1,500 bags/h.
• Save labour: ≈ 1 machine = 5 workers.
• Save film: auto-length cut, up to ~30% material savings.
• Seal quality: custom seal-knife for firm, clean seals.

Representative Specs

• Bag film: PE roll Ø≤400 mm, t=0.04–0.08 mm, W=450–700 mm.
• Pack size: L150–450 mm, W100–400 mm, H7–150 mm; ≤15 kg.
• Label: 70–180 × 70–100 mm (thermal).
• Power/Air: AC220 V, ~3.5 kW; 0.6–0.8 MPa ≈0.4 m³/min.
• Machine: 2170×1680×1650 mm; ~700 kg.

Business Benefits

• Higher picks-to-ship rate with fewer touches.
• Lower consumables and labour cost per order.
• Traceable, error-free labels from scan-driven logic.

GL70D – High-Speed E-commerce Packaging (Platform Variant)

GL70D is the sibling platform to GL70C, built around the same scan → seal → label workflow and ERP/WMS + scale/sorter integrations for unmanned e-commerce packing. Use GL70D when your spec calls for a different bag range/configuration or line integration variant. (Model-specific speed/size ranges vary by configuration—confirm against the supplier sheet.)

Platform Features (inherits from GL70 series)

• Scan-driven labeling to avoid mis-label errors.
• Film length auto-adjust to reduce material waste.
• Industrial control + PLC/HMI for fast changeovers.

Business Benefits

• Same zero-touch flow, sized to your bag/media needs.

• Lower total cost per parcel via labour/film savings.

GPK-40E Carton Erector + GPA-50 / GPG-50 Carton Sealer

End-of-line automation that erects RSC cartons and tapes top/bottom with consistent quality. Pair the GPK-40E erector with a GPA-50 (random/continuous) or GPG-50 (adjustable) sealer to standardise carton handling and throughput.

Smart, Linked Workflow

• Magazine feed with up to 80–100 cartons; erects 10–12 cases/min.
• Seamless hand-off to sealers; conveyor 20 m/min on GPA-50/GPG-50.

Key Features & Specs

• Carton range (erector): L270–450 × W150–400 × H100–400 mm.
• Tape width options: 48/60/75 mm.
• Compact footprints; single-phase power on erector.

Business Benefits

• Fewer jams and reworks; square, consistent cases.
• Predictable packing rate ahead of weigh/label lines.
• Quick size changes keep mixed-SKU lines moving.

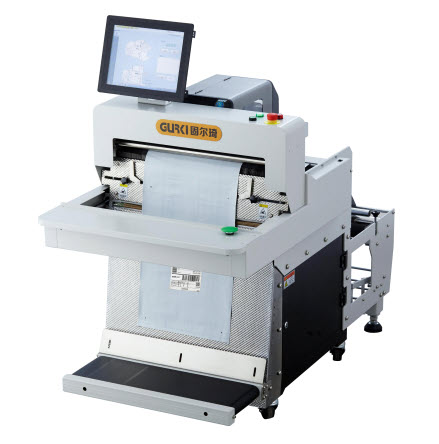

GS60E — Intelligent Courier Packing (Compact Platform)

Compact one-operator packer for courier bags with scan → seal → label in a single pass, designed for e-commerce lines needing a smaller footprint and quick training. (Supplier sheet shows GS60D revision; GS60E follows the same platform with configuration differences.)

Smart Automation & Control

• One scan → one print/label to avoid mistakes.
• Anti-static measures for smooth bag handling.
• Safety design against crush/scald/mis-operation.

Key Features & Specs

• Speed: up to 1,200 bags/hour with one operator.
• PE bag roll W=100–550 mm; L=240–700 mm; label W=40–100 mm, L=60–180 mm.
• Power/Air: AC220 V ~1.5 kW; ~0.07 m³/min at 4–5 kg/cm².
• Machine: 1680×850×1420 mm; ~320 kg; 15″ HMI.

Business Benefits

• Rapid onboarding (simple HMI) and small footprint (~1.5 m²).
• Reliable seals (fast-heat seal knife) and fewer rejects.
• Lower labour per order while maintaining label accuracy.

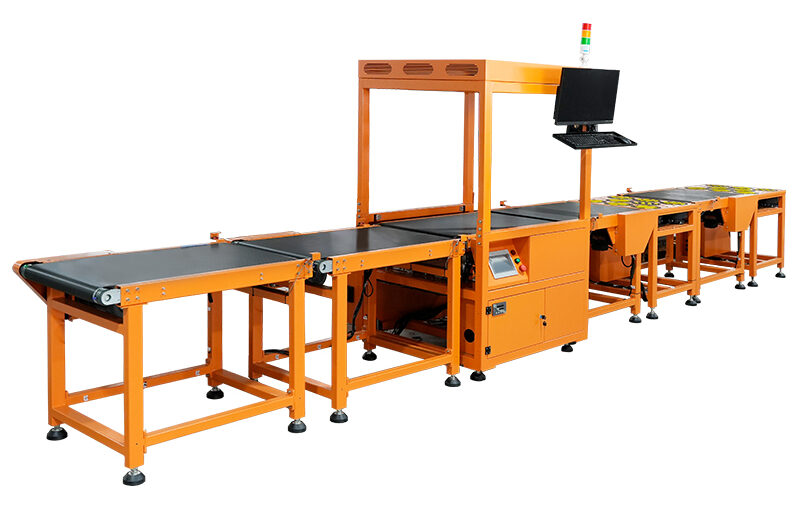

GS10A — Conveyor Sorter (High-Speed Scanning, Weighing & Sorting)

Key features

• End-to-end automation: Integrated code scanning, dynamic weighing, auto-sort, reject and collection on one line — ideal for eCommerce and 3PL dispatch zones.
• Fast throughput: Processes around 3,000–3,500 parcels per hour with stable item flow and quick cycle time.
• Accurate by design: System-level weighing accuracy typically 10–20 g, with module-level accuracy bands optimised across weight ranges (e.g., ≤5 kg ±10 g; 5–20 kg ±20 g).
• Broad parcel window: Handles small satchels through to mid-size cartons within typical ranges shown below.
• Smart vision: Industrial camera + lens set captures and verifies barcodes/IDs at high speed; automatic data upload eliminates manual entry.
• Pendulum-wheel diversion: Gentle, scratch-free sorting with fast, bi-directional steering for precise lane placement.
• Plug-in components: Conveyor, scanner, scale and sorter are modular for easy service, upgrades and layout changes.
• Systems ready: Native Ethernet/USB connectivity with integration to ERP/WMS for real-time label, weight and order data sync.
• Operator-friendly: 21″ HMI, keyboard/mouse, clear alarms and status lights; table heights tuned for comfortable, safe operation.

Specifications (typical configuration)

Throughput: 3,000–3,500 pcs/h

Parcel size: L 150–500 mm, W 150–500 mm, H 20–500 mm

Parcel weight: 10 g – 20 kg

Weighing accuracy (system): 10–20 g (module bands up to ±20–50 g depending on load)

Display / HMI: 21″ LCD, keyboard & mouse

Comms: Ethernet, USB

Power supply: AC220 V, 50 Hz

Machine size / weight: Customisable to site layout

Core modules (example)

• Dynamic scale (GCZ500B): 20 g–20 kg; ≤5 kg ±10 g, 5–20 kg ±20 g; belt 12 m/min; 600 W; package window L80–500 × W100–500 × H10–500 mm.
• Pendulum wheel sorter (GFG04A): up to 4,500 pcs/h; 500 W; same package window as above.
• High-speed conveyor (GSS550A): 20–120 m/min adjustable; belt 550 mm; 500 W.
• Code scanning mechanism (GFS10-SM): Industrial camera (≈2 MP), up to 5,000 scans/h; 1,000 W.

Notes: Final specs can vary with line length, lane count, infeed/outfeed style and software options. We’ll configure the GS10A to your exact parcel mix and target throughput.

Business benefits

• More orders out the door: High throughput with continuous scanning and weighing keeps dispatch flowing during peaks.
• Lower handling cost per parcel: Automation replaces multiple manual touchpoints (scan → weigh → sort), reducing labour and errors.
• Charge-weight confidence: Accurate dynamic weighing + ID capture strengthens freight audit, surcharges and customer billing.
• Fewer mis-sorts & damages: Pendulum-wheel steering delivers gentle, precise sortation — ideal for eCommerce satchels and cartons.
• Real-time visibility: Live data to ERP/WMS improves pick-pack-ship accuracy, exceptions handling and carrier handoff.
• Scalable & serviceable: Modular hardware and standard electronics simplify maintenance and make future capacity upgrades straightforward.

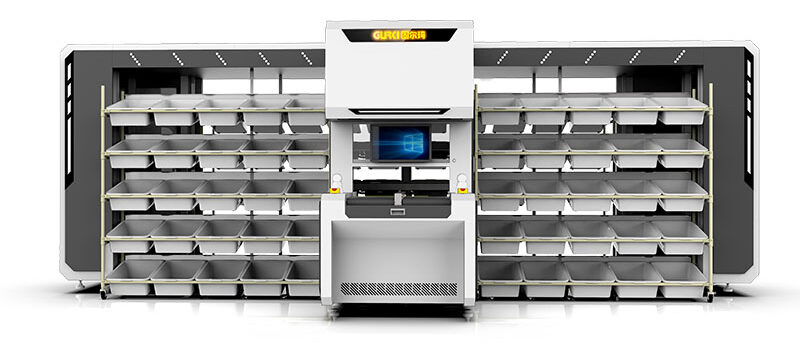

Gurki GT2500 — Put Wall Sorter System

Meet the GT2500 put-wall sorter: a compact, three-dimensional sorting wall designed for multi-SKU, multi-flow operations. Grid count and cell size are fully configurable to suit your products, site and throughput targets, delivering high sorting accuracy and fast payback while improving space utilisation and operator efficiency.

Key features

• Fast, precise sortation – Mechanical efficiency up to 2,500 pcs/hour with stable weighing/scan-to-slot accuracy.
• Configurable cell matrix – Increase/decrease grid count and adjust slot size to match SKUs, packaging and available floor space.
• Multi-scenario ready – Supports forward dispatch, returns processing and put-to-light workflows in the same wall.
• Labor-efficient workflow – Short travel paths and ergonomic 900 mm bench height reduce operator fatigue; optional automatic loading lowers manual touches.
• Seamless integration – Connects to ERP/WMS and upstream packing/sealing for real-time data capture and end-to-end traceability.
• Modular expansion – Add slots (cells), extra bays or peripherals as volumes grow without re-platforming your line.

Specifications

• Equipment size: L 6280 mm × W 2800 mm × H 2400 mm
• Package size range: L 50–380 mm × W 50–300 mm × H 10–150 mm
• Max product weight: 10 g – 3 kg
• Picking efficiency (throughput): 2,500 pcs/h
• Number of slots (cells): 100 (customisable)
• Supply method: Manual loading / Automatic loading
• Power supply: AC380 V / 50 Hz
• Bench/table height: 900 mm (customisable)
• Trolley size (wire-rod car): L 2060 mm × W 530 mm × H 1900 mm

Business benefits

• Accelerate order processing – Hit SLA peaks with reliable 2,500 pph sort rates.
• Reduce labour cost – Fewer steps and less double-handling cut touches per order; optional auto-loading drives further head-count savings.
• Lift accuracy & customer satisfaction – Guided put-wall workflows and scan-to-slot logic reduce mis-sorts and rework.
• Maximise floor space – High slot density and vertical design improve space utilisation versus conventional shelving.
• Scale on demand – Add slots or bays as SKU count and order lines grow; protect your capex with a short ROI cycle.
• Tighter data control – WMS/ERP connectivity gives live visibility of slot status, exceptions and productivity for continuous improvement.
